Controlled-Rate Freezer

Product Details

———

In order to maintain cellular viability during the freezing process, certain cells – such as protist, mammalian, and plant cells – require precise control of the freezing rate in order to minimize the detrimental effects of undercooling and the heat liberated during the phase change process from water to ice.

Controlled rate freezing is an established procedure for the cryopreservation of biologic material in research and clinical applications. In-line with GMP protocols, cell material can be frozen then stored at cryogenic temperatures.

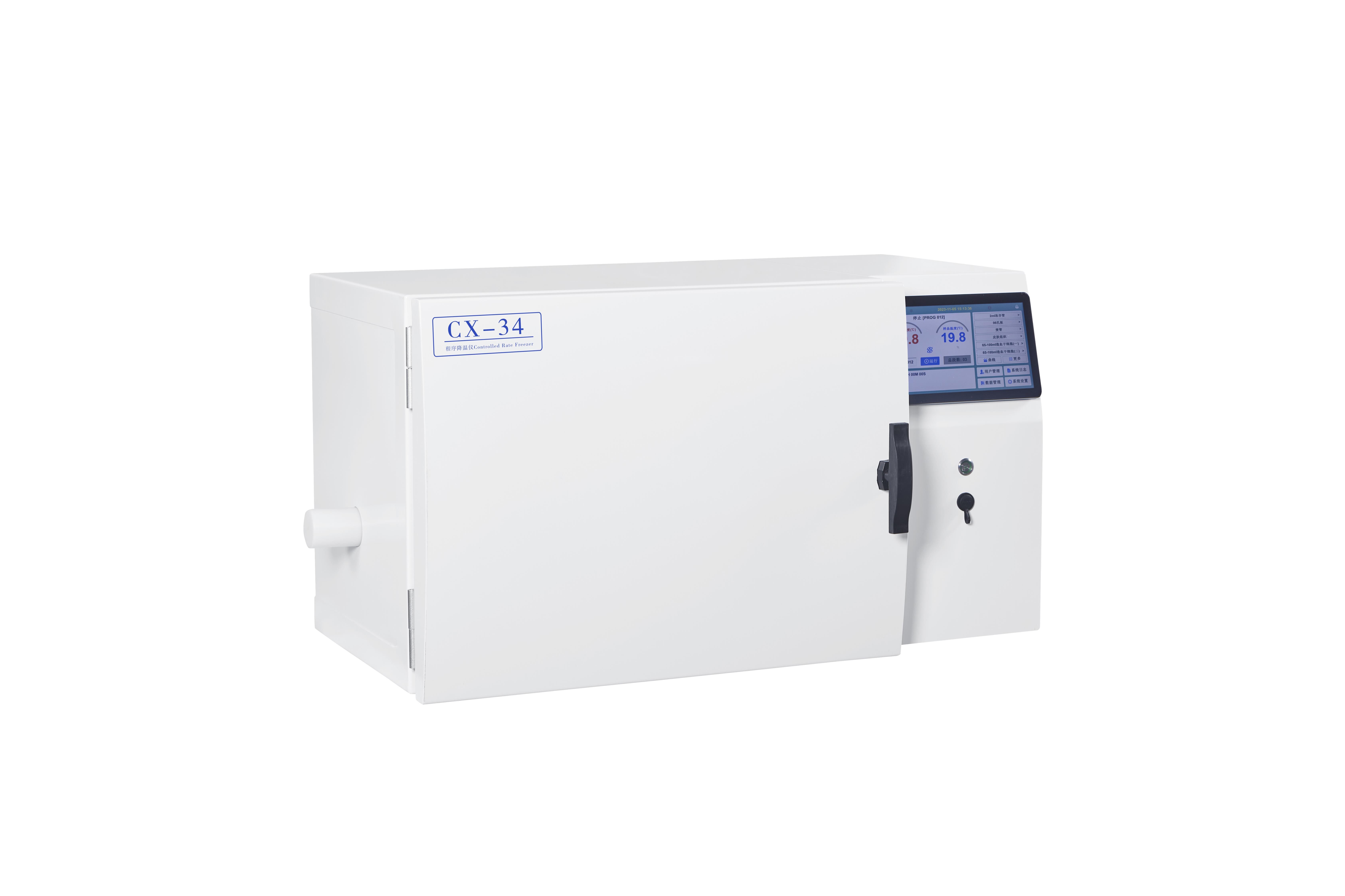

CryoVita controlled-rate freezer (CRF) achieve reliable, reproducible results with maximum operational safety. They are used for clinical, veterinary and research tasks for controlled rate freezing of samples.

MODLE CX-17CX-17CX-34CX-51
Temperature range 50℃-190℃
Dimensions(mm)810mm*540mm*790mm940mm*550mm*790mm960*540*7901110*5410*790
Internal dimensions(um)180mm*305mm*330mm180mm*305mm*330mm330*305*330485*305*330
Volume (L)17173451
Net weight (kg)64647583
Cooling rate0.1-99.9℃/min
Heating rate0.1-10'c/min
Temperature variation<2℃
Control modeMicrocomputer control
Program controlSample temperature/cavity temperature
Display screen7 inch touch screen
Available program6 preset programs, 20 user-defined programs
