Product Details

———

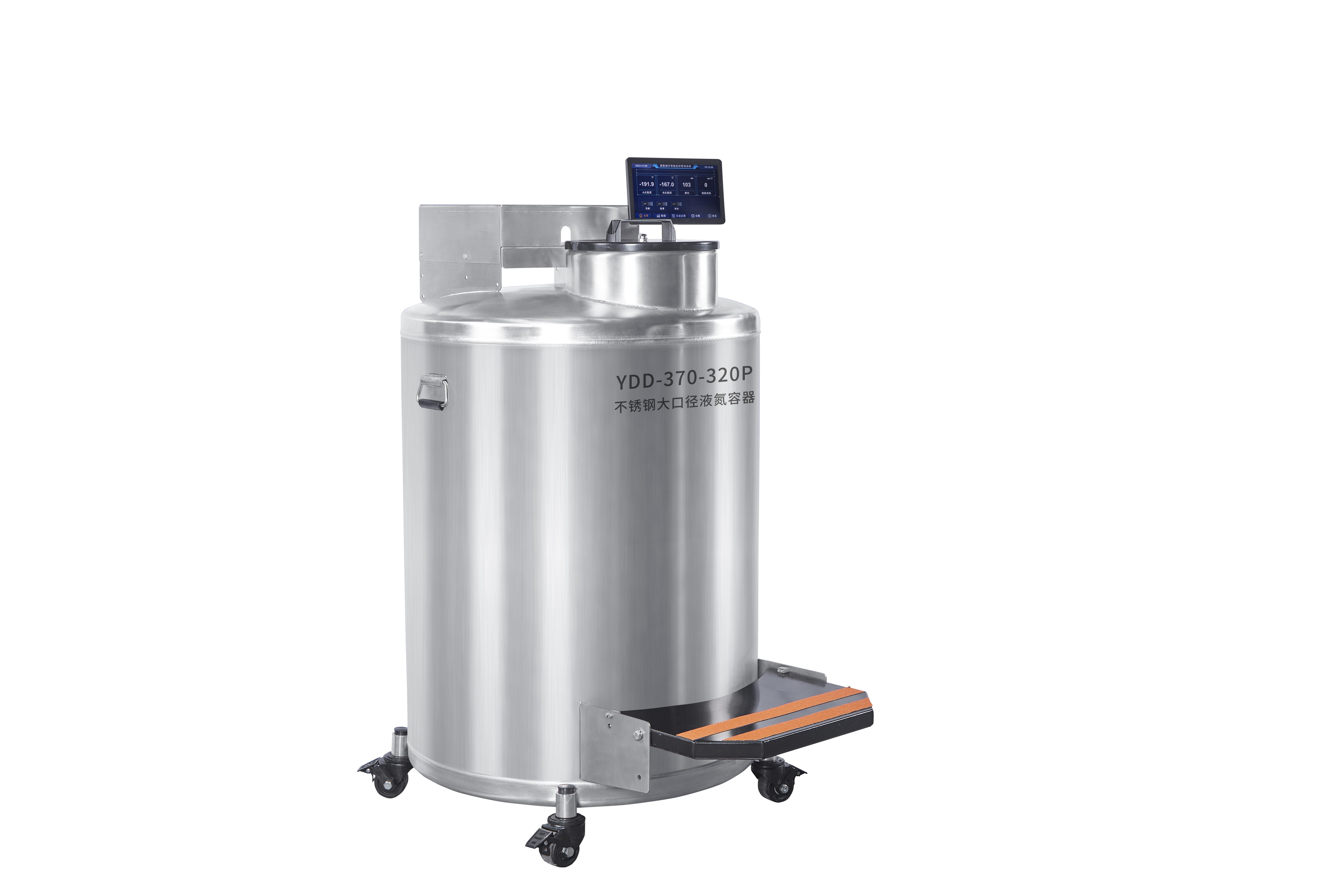

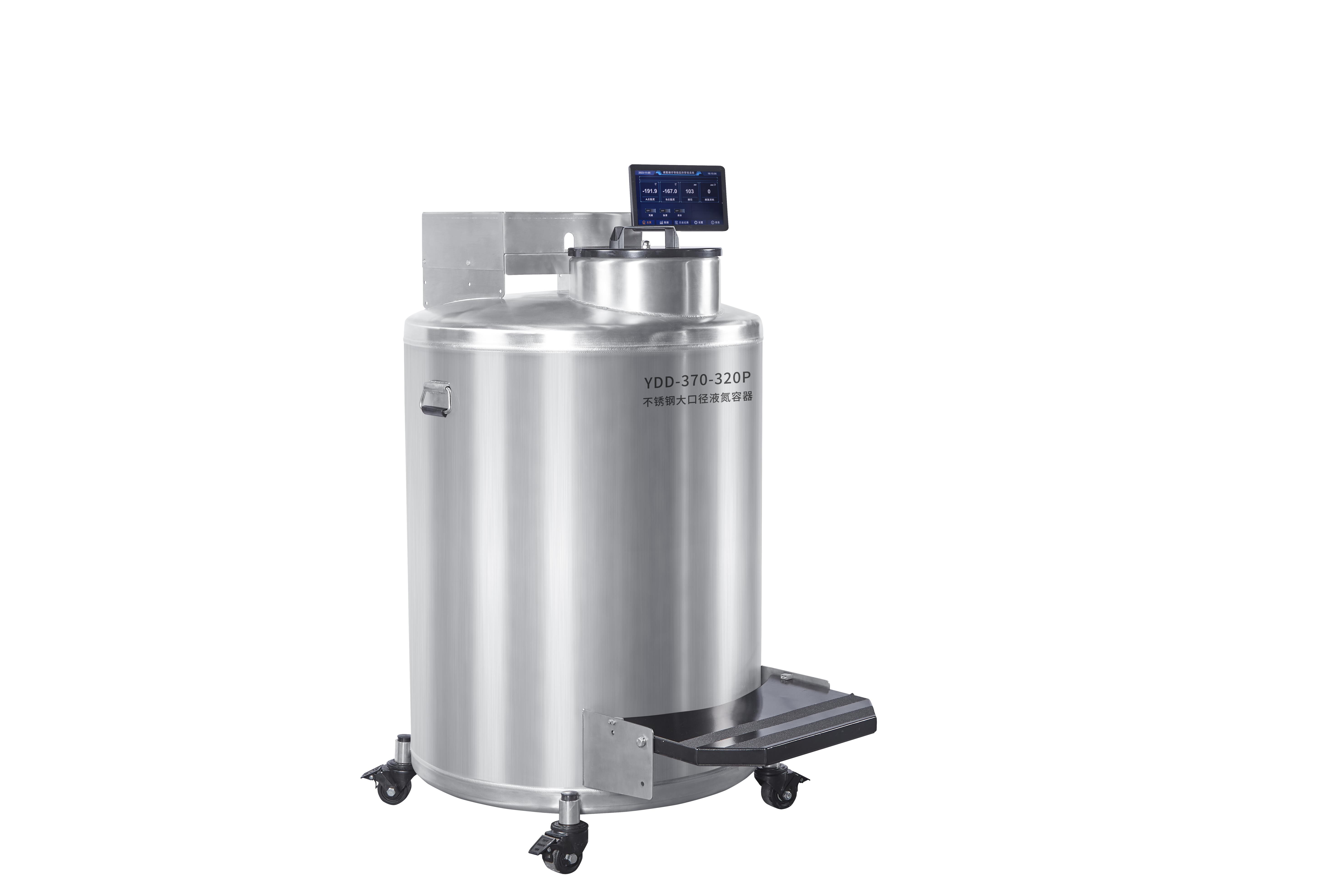

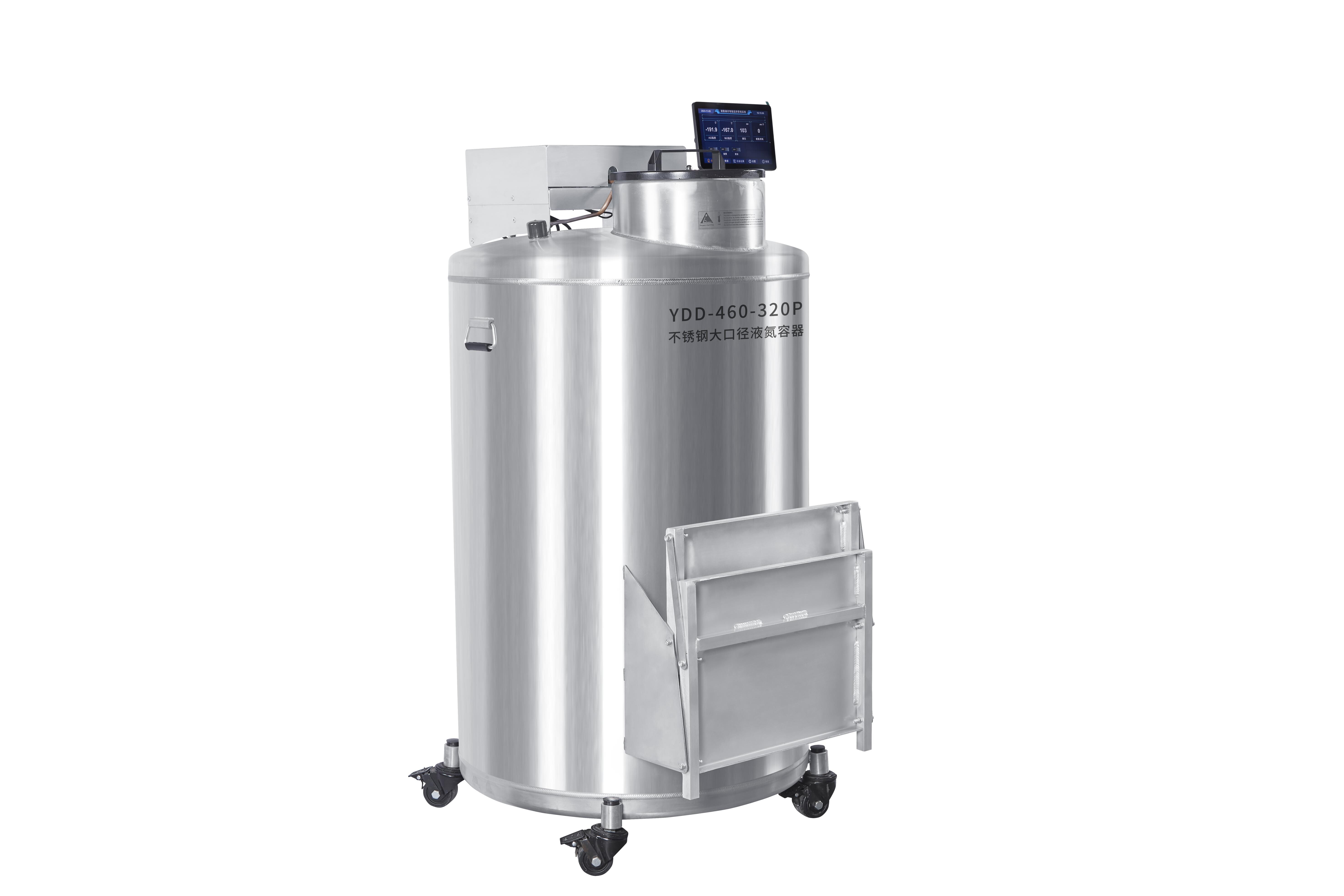

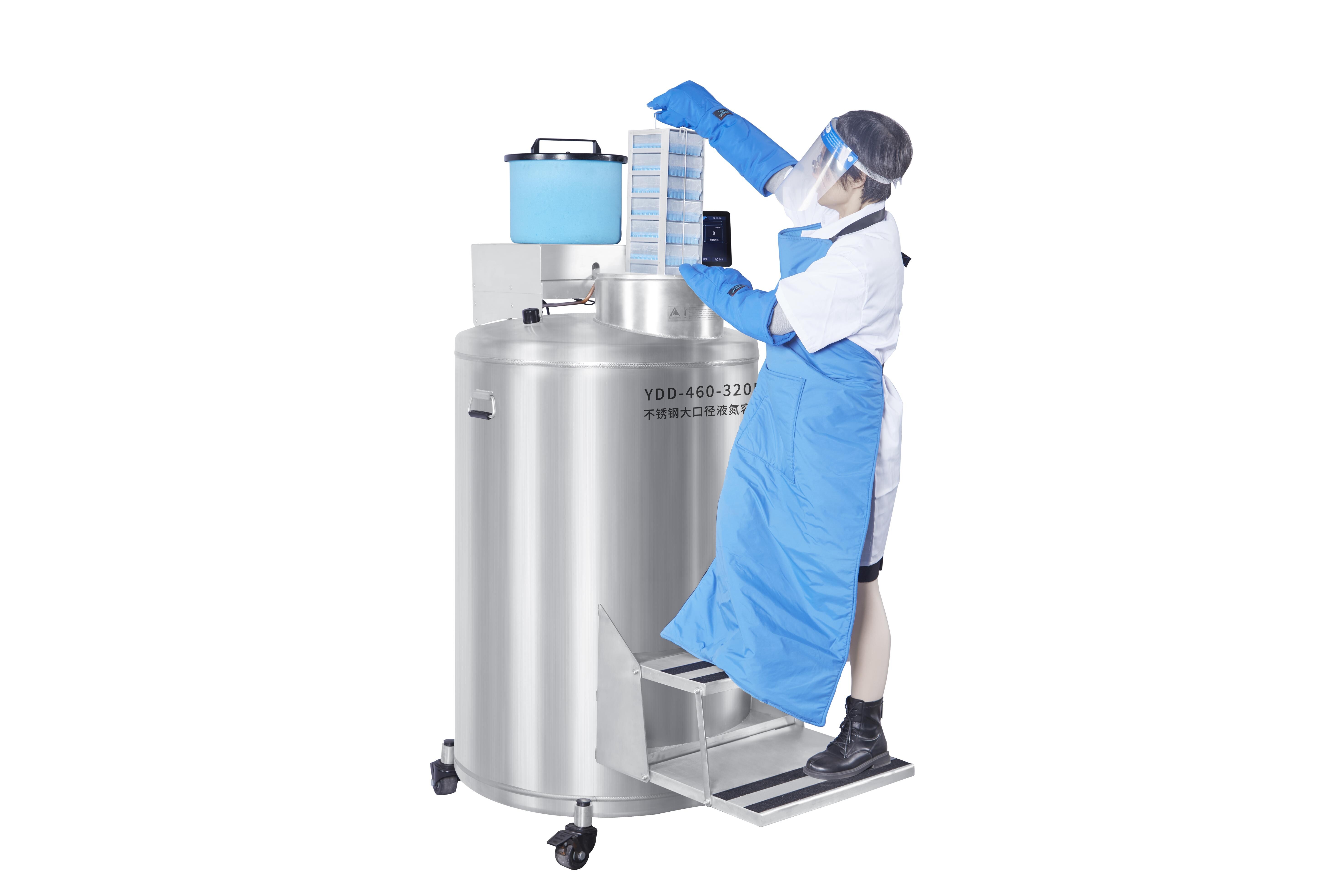

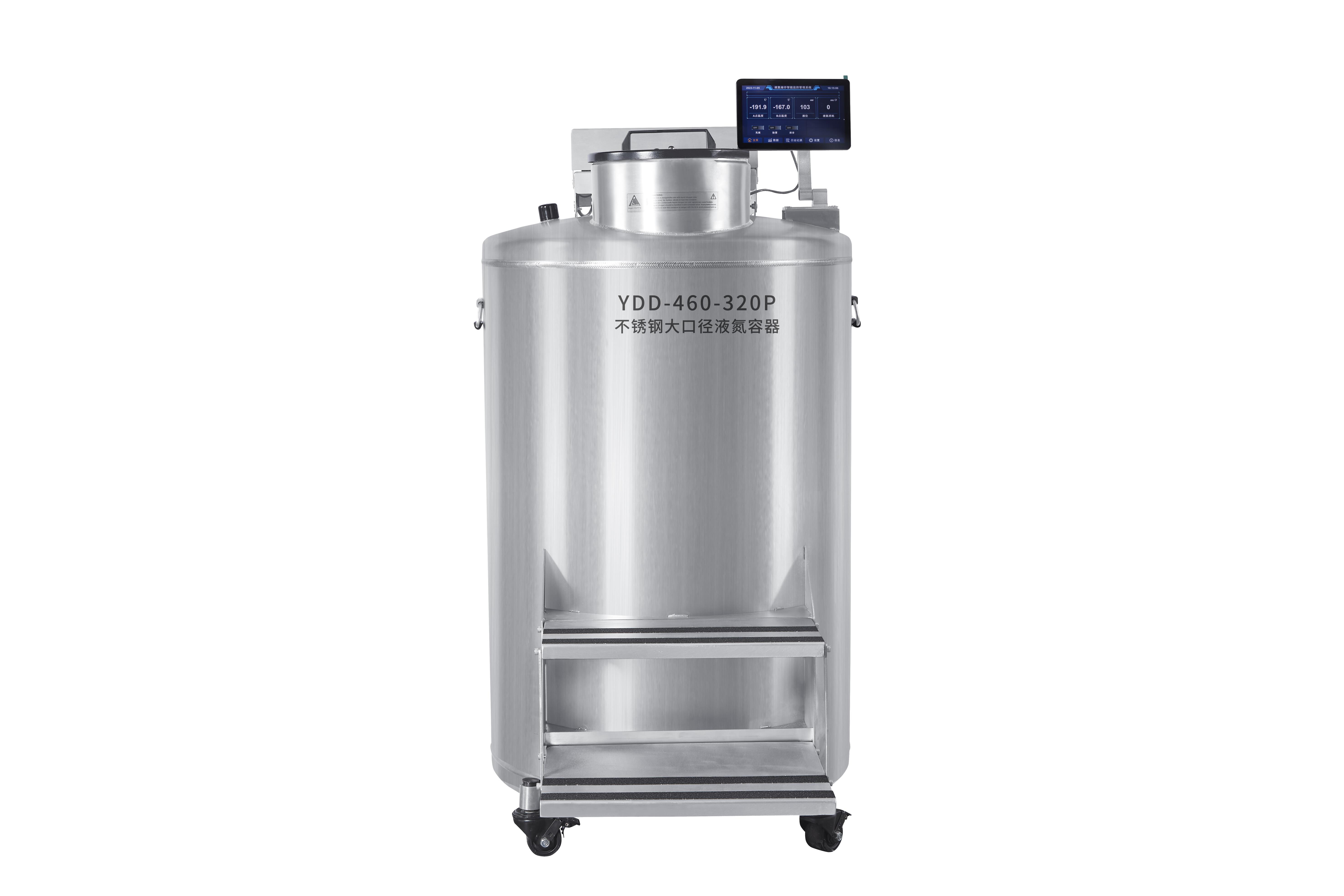

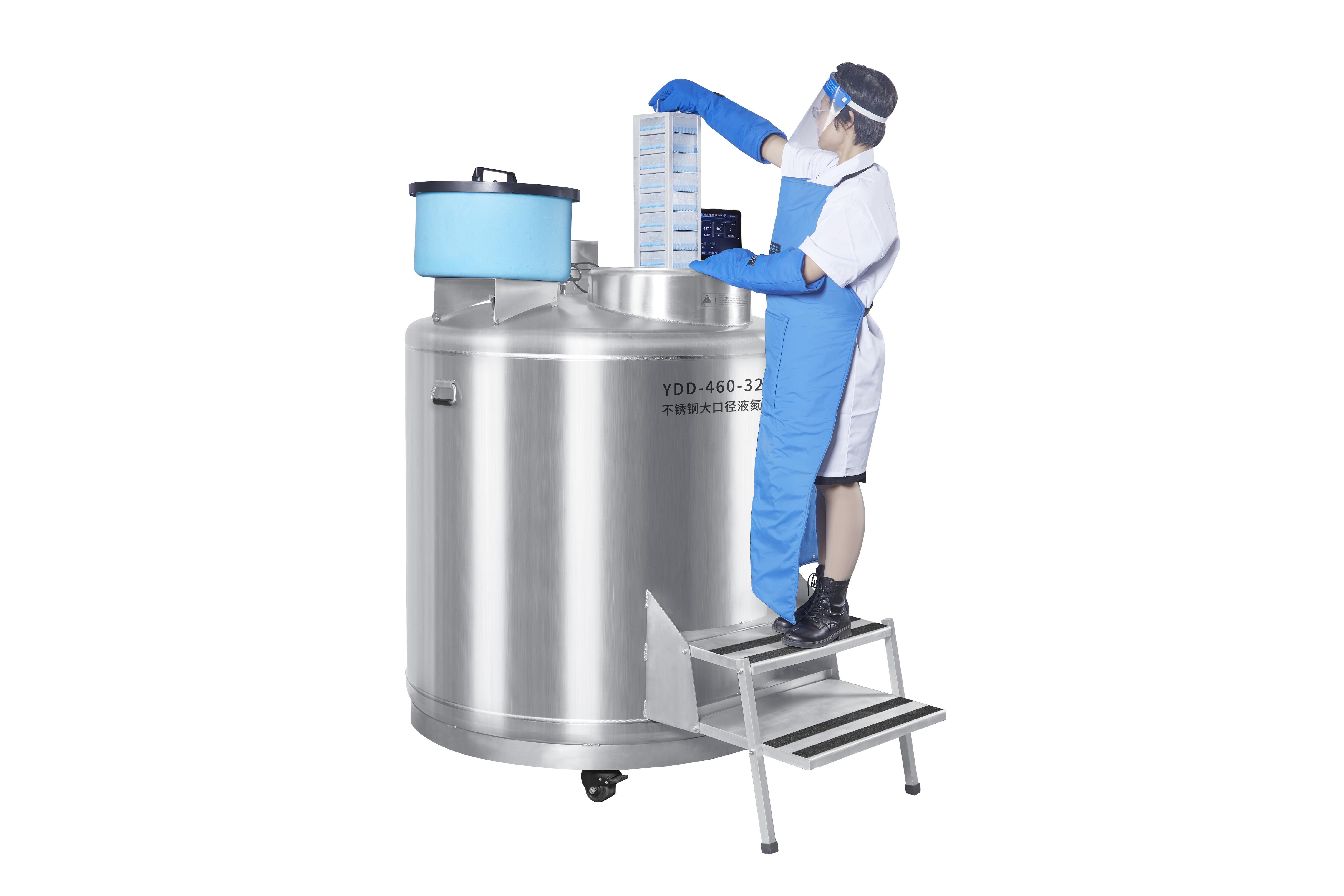

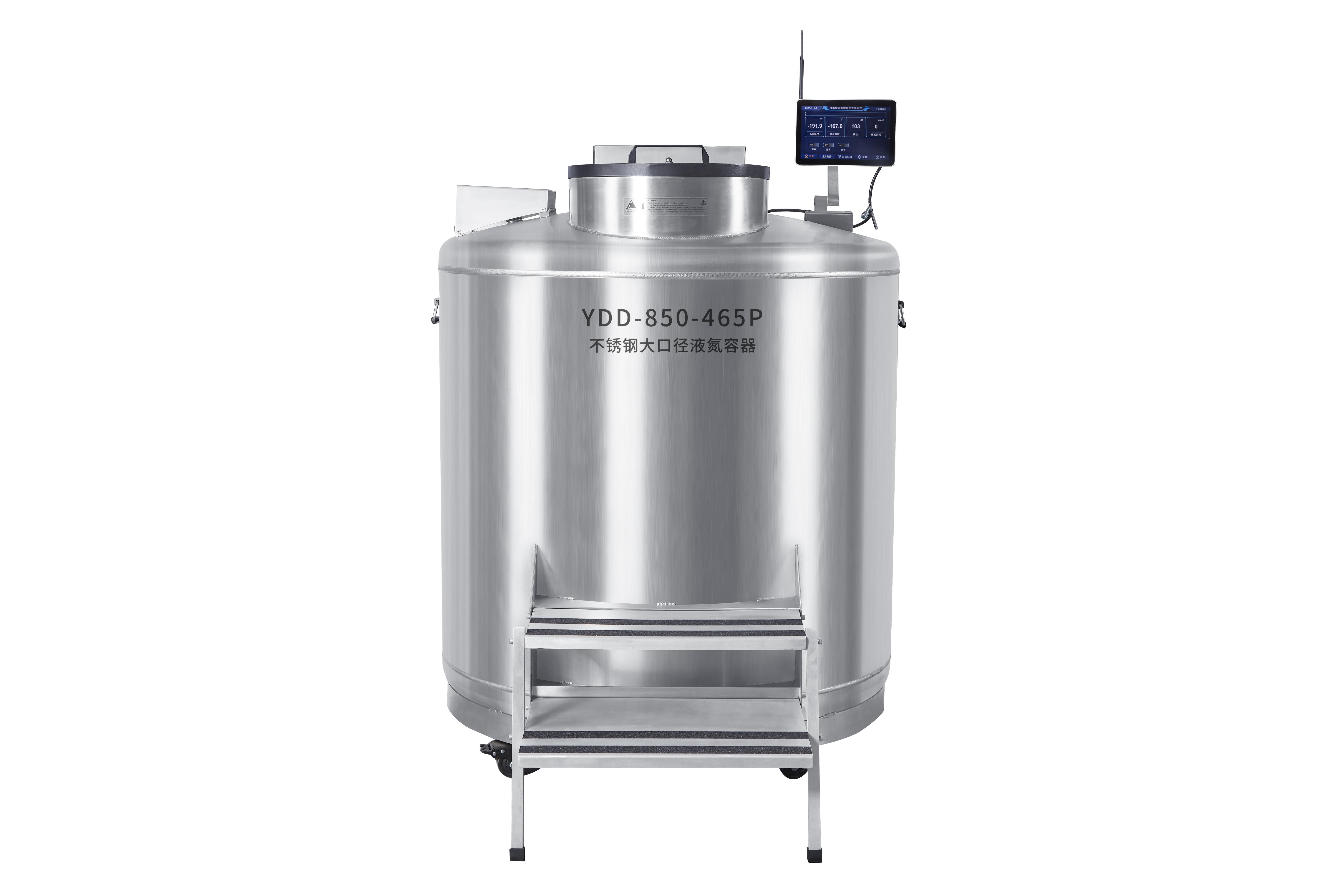

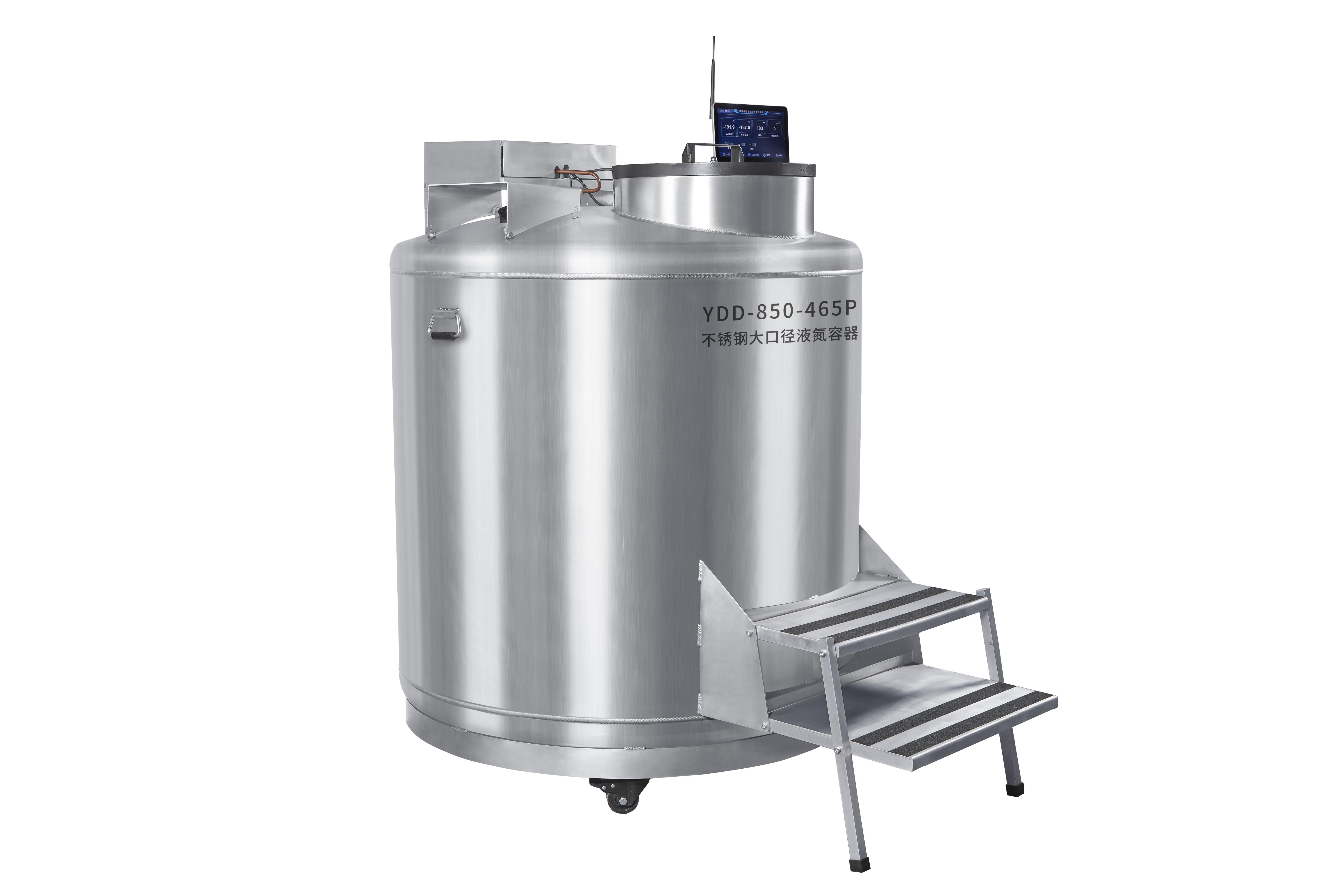

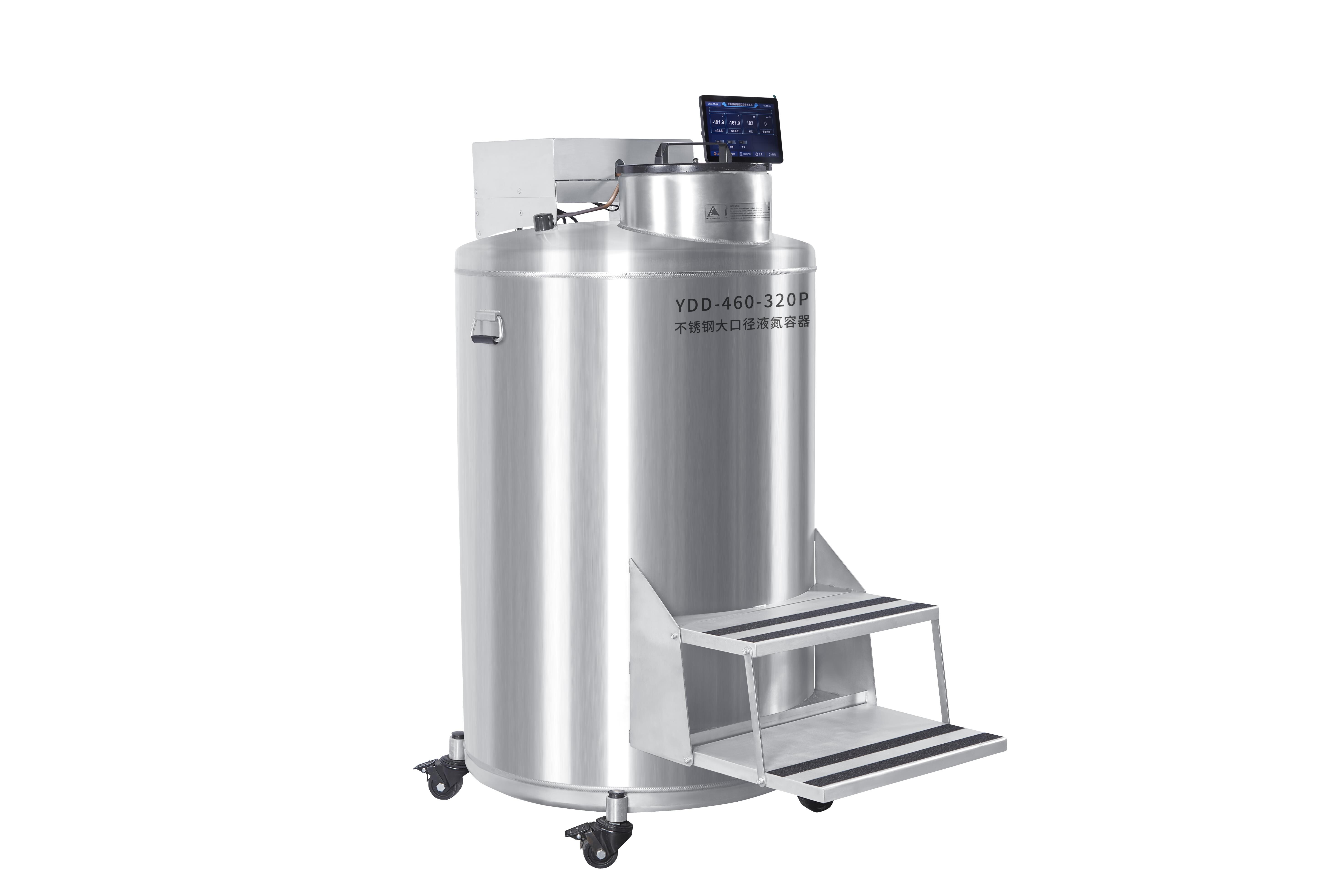

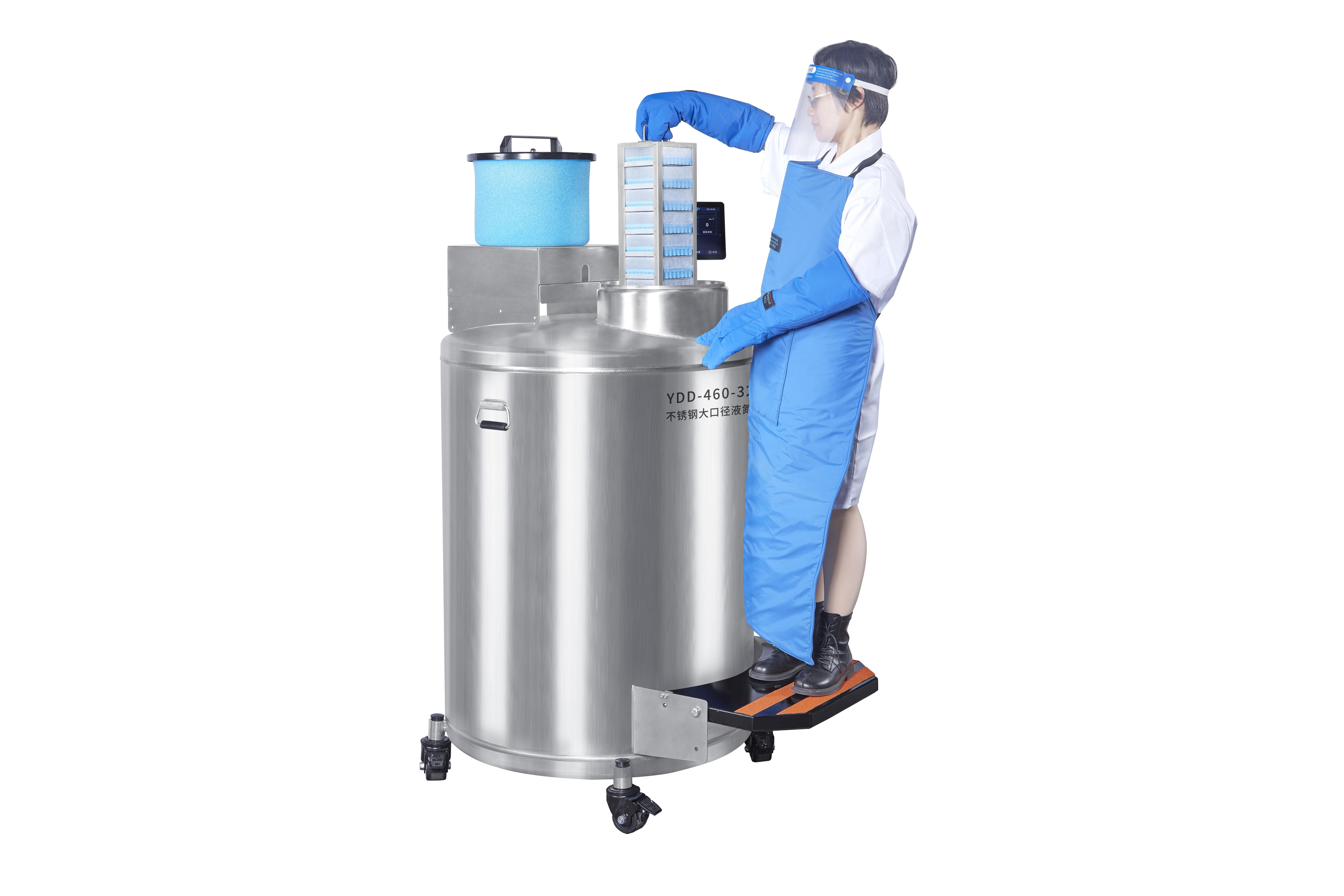

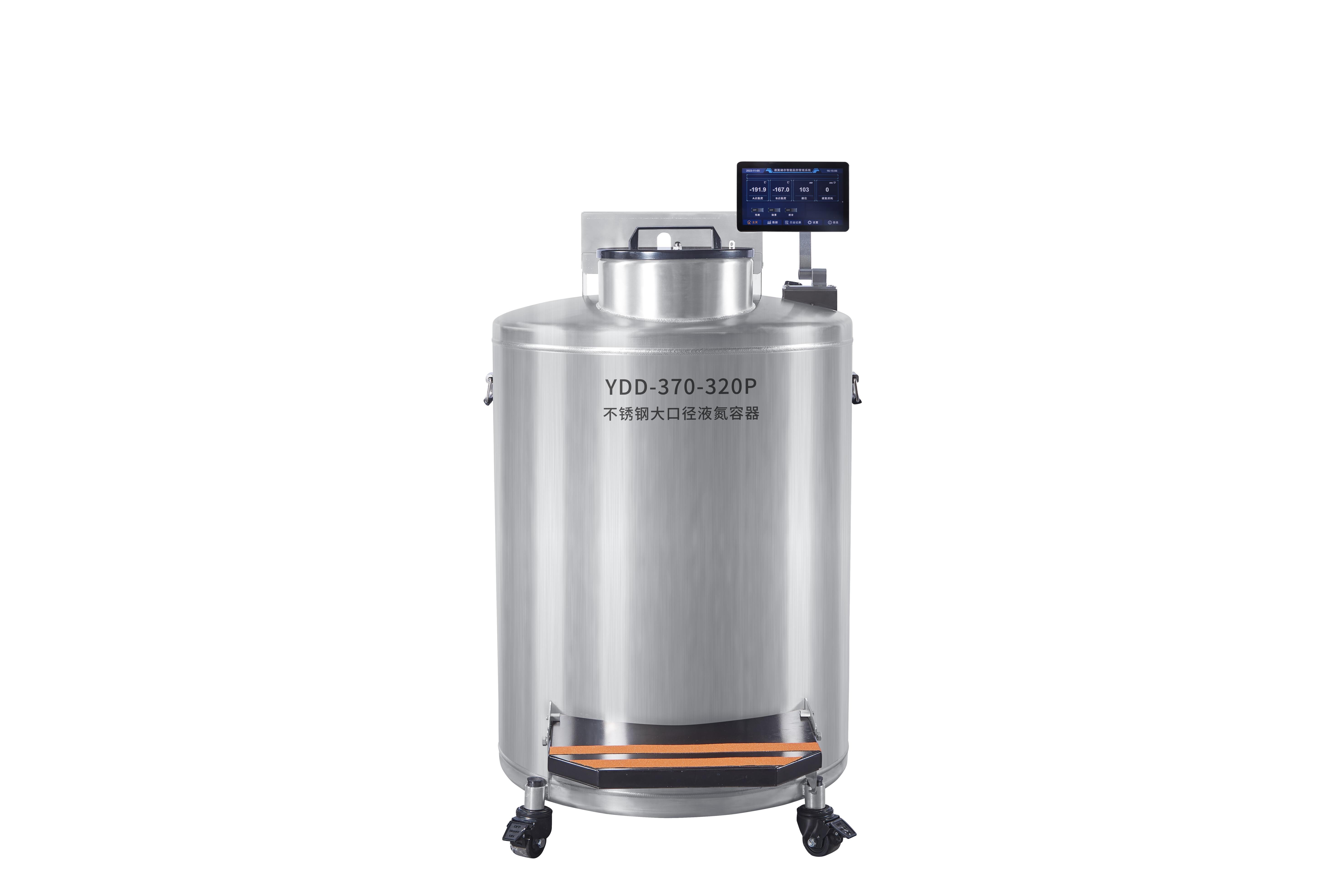

CryoMatrix series high-efficiency vapor phase liquid nitrogen storage system provides the most ideal storage conditions for biological samples. The whole series realize -190°C vapor phase storage. Supported by LN2 automatic filling system and temperature & LN2 level monitoring system, CryoMatrix freezers provide all-round protection to precious sample, assisting life science research and cell therapy applications. Based on the actual needs of users,  has innovatively optimized the performance, structure and control system of the vapor-phase cryogenic freezer to meet the user's highest standard of large-capacity vapor-phase cryogenic storage requirements.

Selection Guide (Parameters) Biobank Series
ModelYDD-370-320PYDD-460-320PYDD-550-445PYDD-800-445PYDD-800-445RYDD-850-465PYDD-1000-465PYDD-1000-520PYDD-1300-635RYDD-1600-635RYDD-1800-635R
Tank parameters
Amount of liquid nitrogen at the bottom of the tray (L)5555125133133165165200296296296
Effective volume of tank (L)37046055080080089010311162134616341854
Tank diameter (mm)317317445445445465465520635635635
Internal effective height (mm)708914590840840765889887617787906
Tank outer diameter (mm)820820109010901090119011901256156515651565
Overall height of tank (mm)14001600140016501650160017001790150016501750
Tank empty weight (kg)211.5264310394.2394.2400495580724765805
Tank operating height981971942108710879971050113084110111142
Full load total weight (KG)51363875010401040111213191526218922302270
After the static liquid nitrogen storage days (liquid phase) are changed749280118118130130125177177177
After the static liquid nitrogen storage days (gas phase) are changed1111171818252525303030
Door width requirement ≥ mm850850114011401140121012101300161516151615
Maximum storage quantity of internal rotating cryovials in a square freezing box
Quantity of 1.2, 1.8, 2ml internal rotation cryovials1560019500280003920040600429005100055500630008190094875
5×5 square bucket quantity4416161241620121213
10×10 square bucket quantity1212242426323032606060
Square bucket layers1215101414131515101315
Maximum storage quantity of blood bags
25ml (791 OS/U) (box size 98*90*15mm)1732(7 floors*196)1472(8 floors*184)2448(6 floors*408)3264(8 layers*408)3184 (8 layers*398)2996 (7 floors*428)3852 (9 layers*428)4788 (9 floors*532)4812 (6 layers*802)5614 (7 layers*802)7218 (9 floors*802)
50ml (4R9951) (box size 155*90*15mm)896(7 floors*128)1024(8 layers*128)1488(6 layers*248)1984(8 layers*248)1687 (7 floors*241)1904 (7 floors*272)2394 (9 floors*272)3132 (9 floors*348)2964 (6 layers*494)3458 (7 layers*494)4446 (9 floors*494)
250ml(4R9953) (box size 200*140*15mm)400(4 floors*100)500(5 floors*100)588 (3 floors*196)980(5 floors*196)1020 (5 floors*204)832 (4 layers*208)1020 (5 floors*208)1340 (5 layers*268)1164 (3 layers*388)1940 (5 floors*388)1940 (5 floors*388)
500ml(4R9955)(box size 275*145*15mm)240(4 floors*60)410(5 floors*82)396 (3 layers*132)660(5 layers*132)791 (5 floors*158)464 (4 layers*116)520 (5 floors*116)900 (5 floors*180)654 (3 layers*218)872 (4 layers*218)1090 (5 floors*218)
