Self Pressure Ln2 Supplying Series

Product Details

———

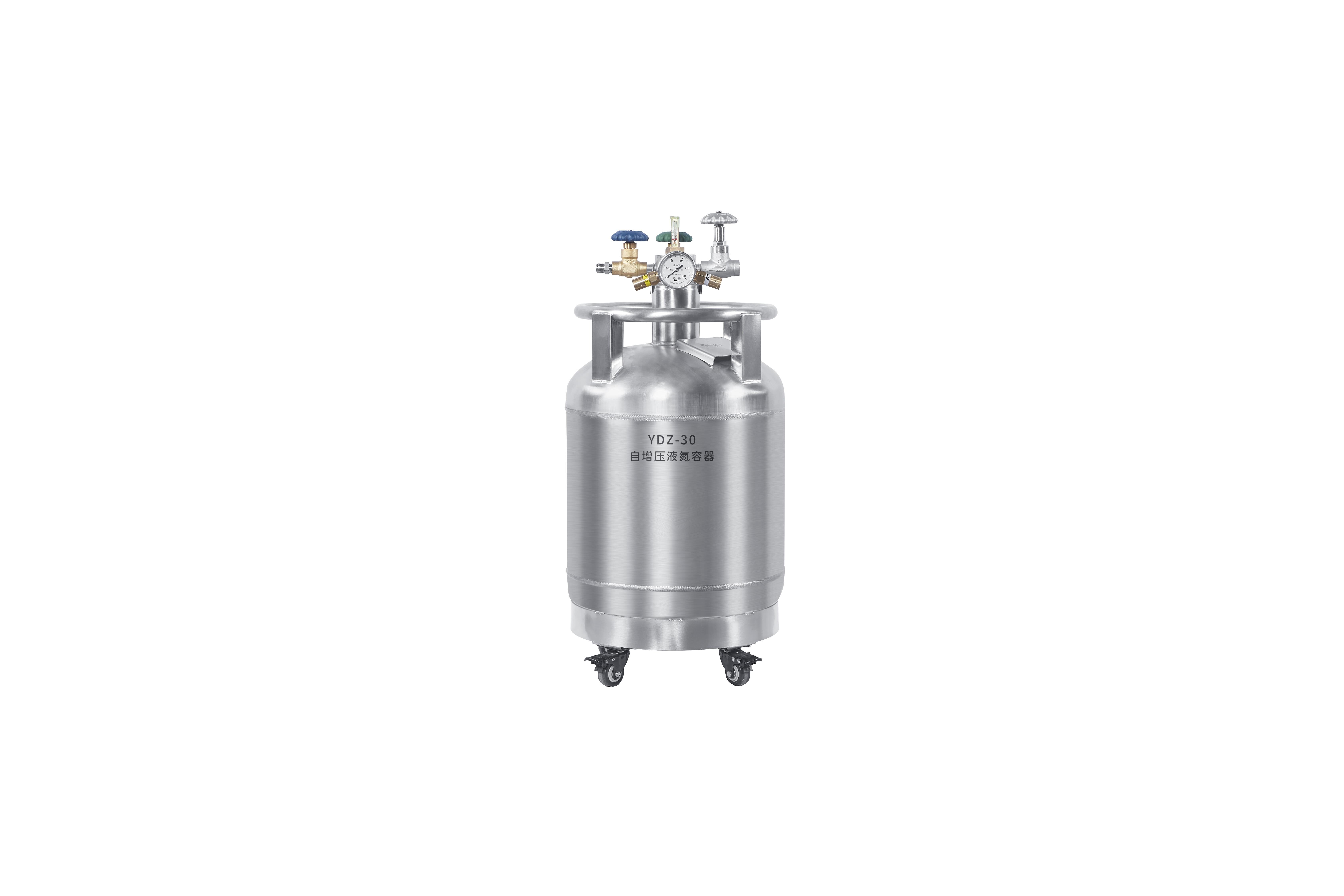

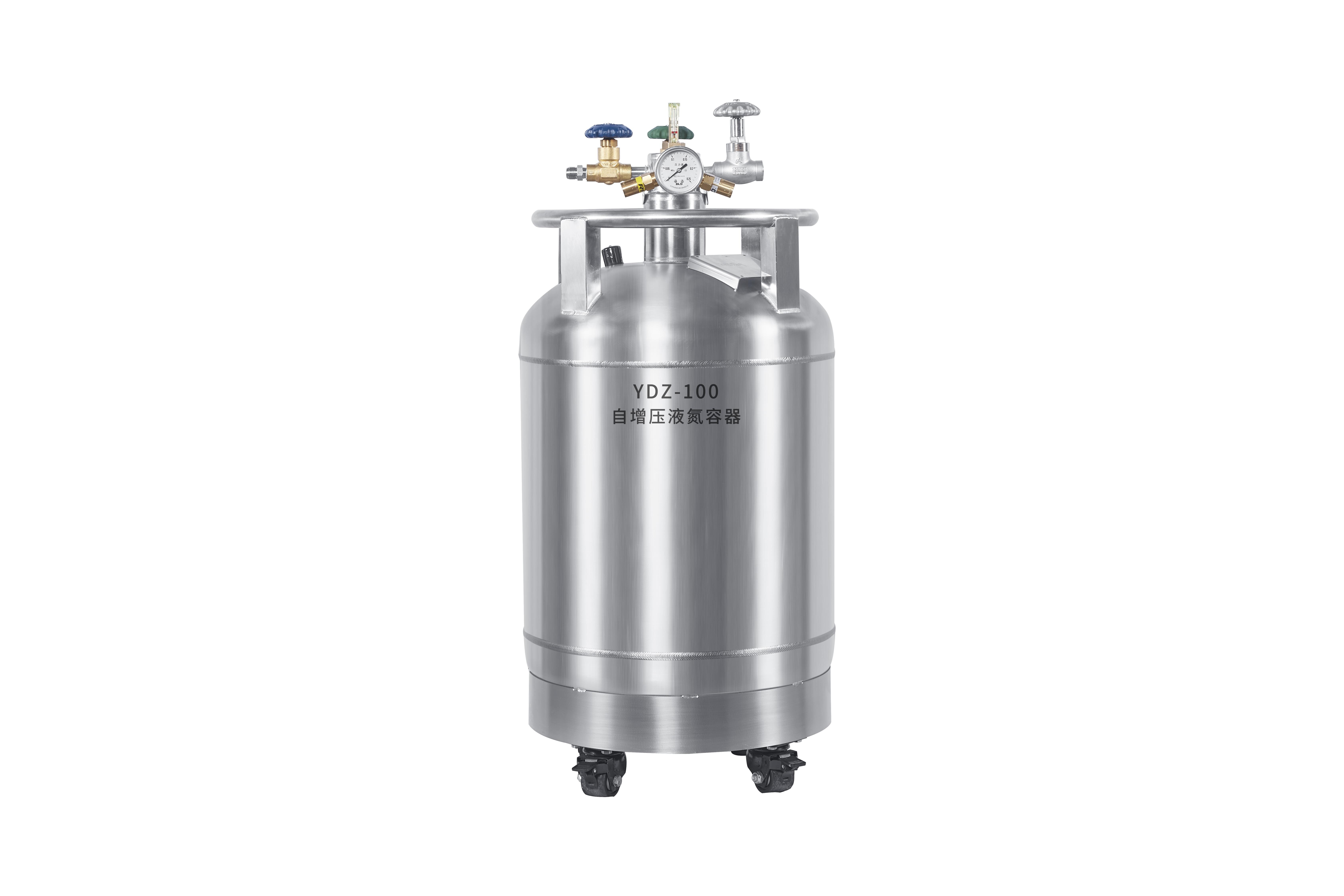

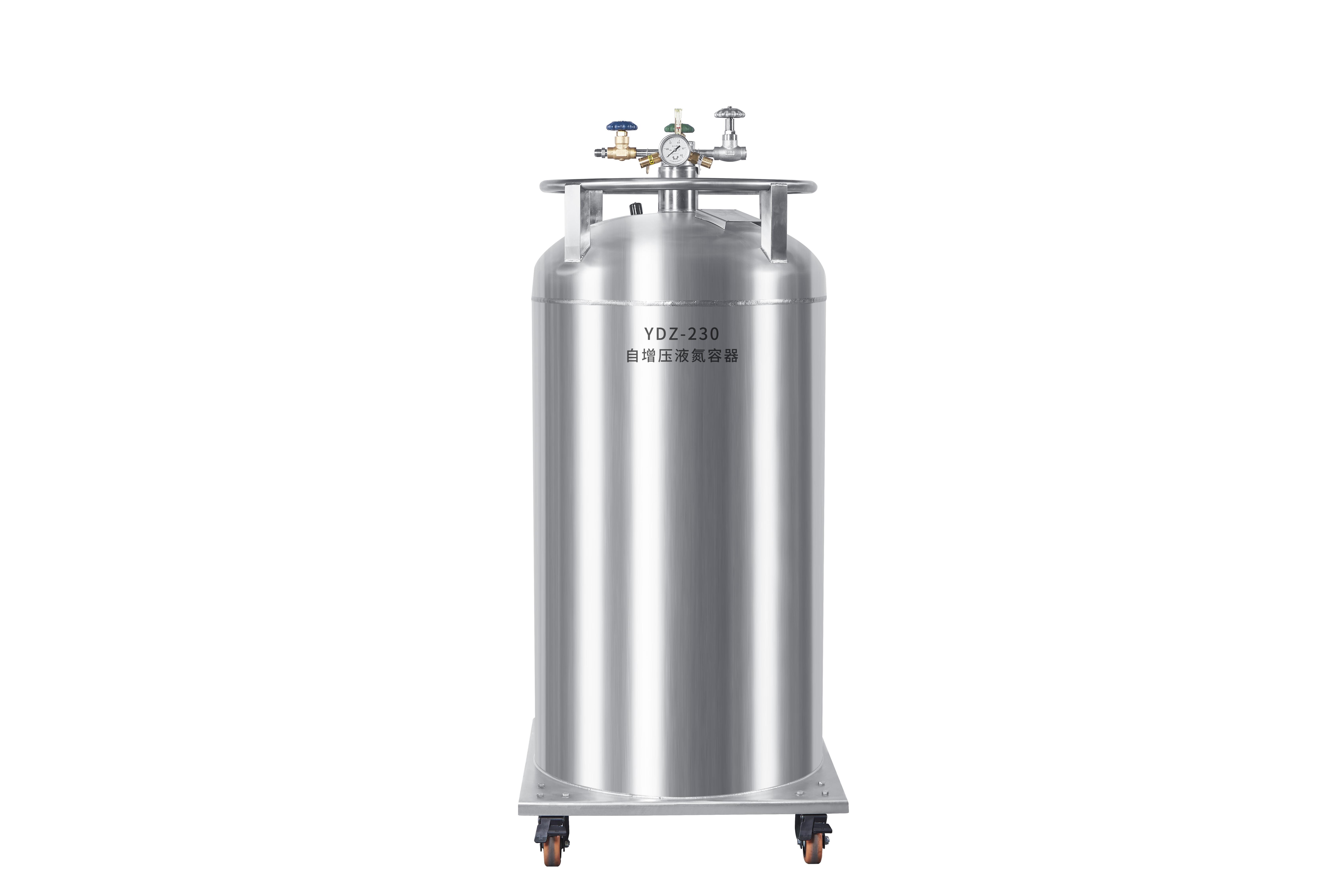

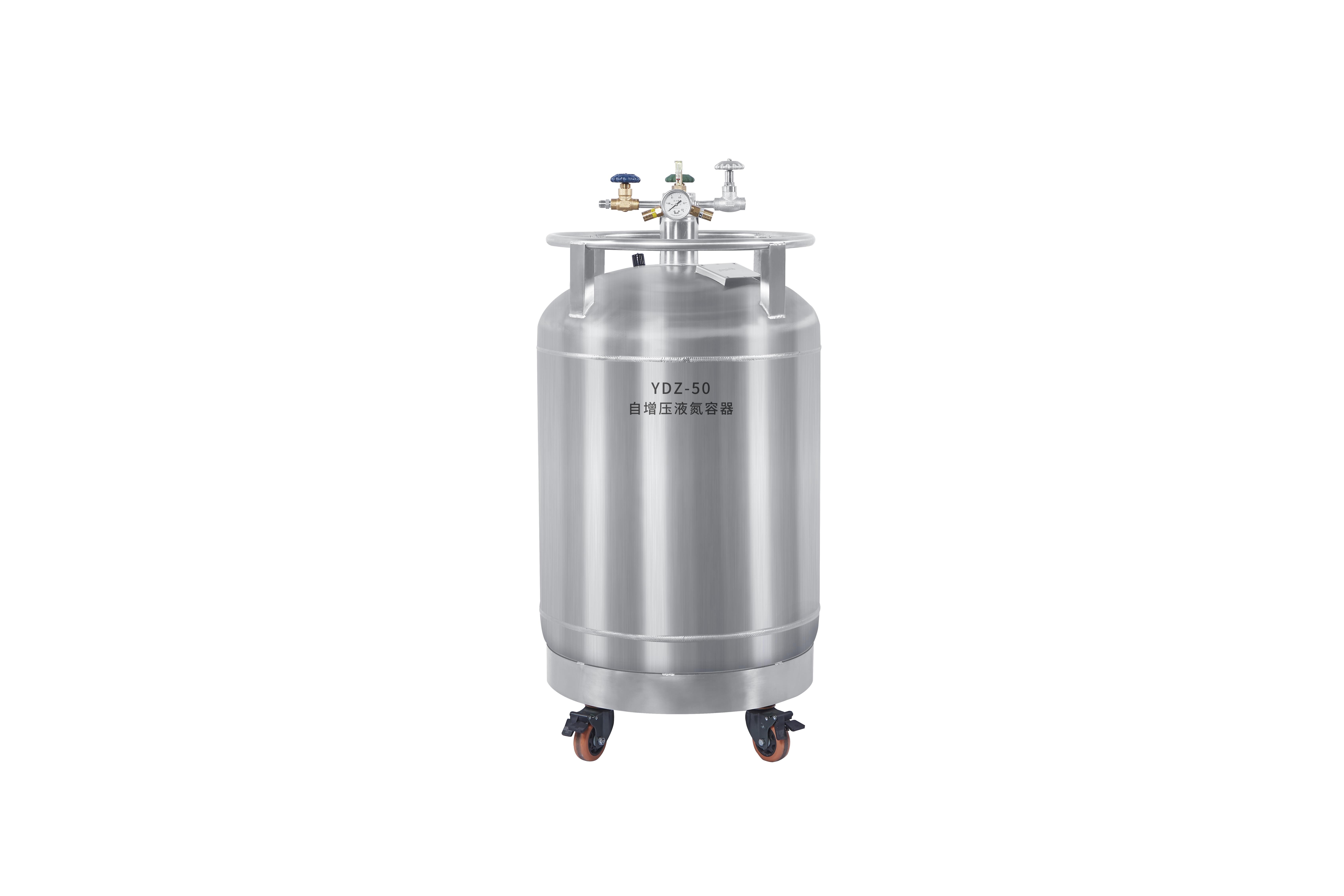

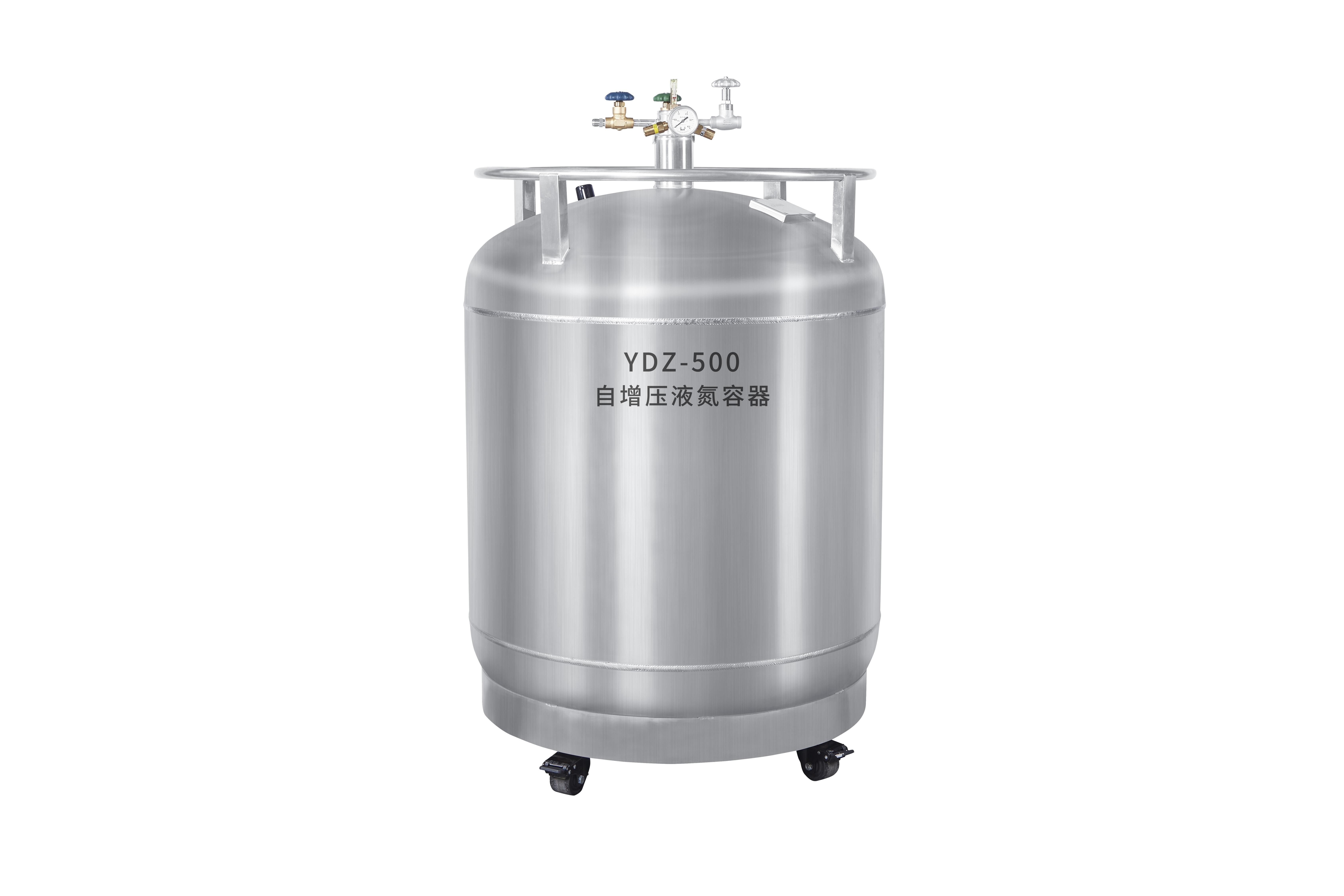

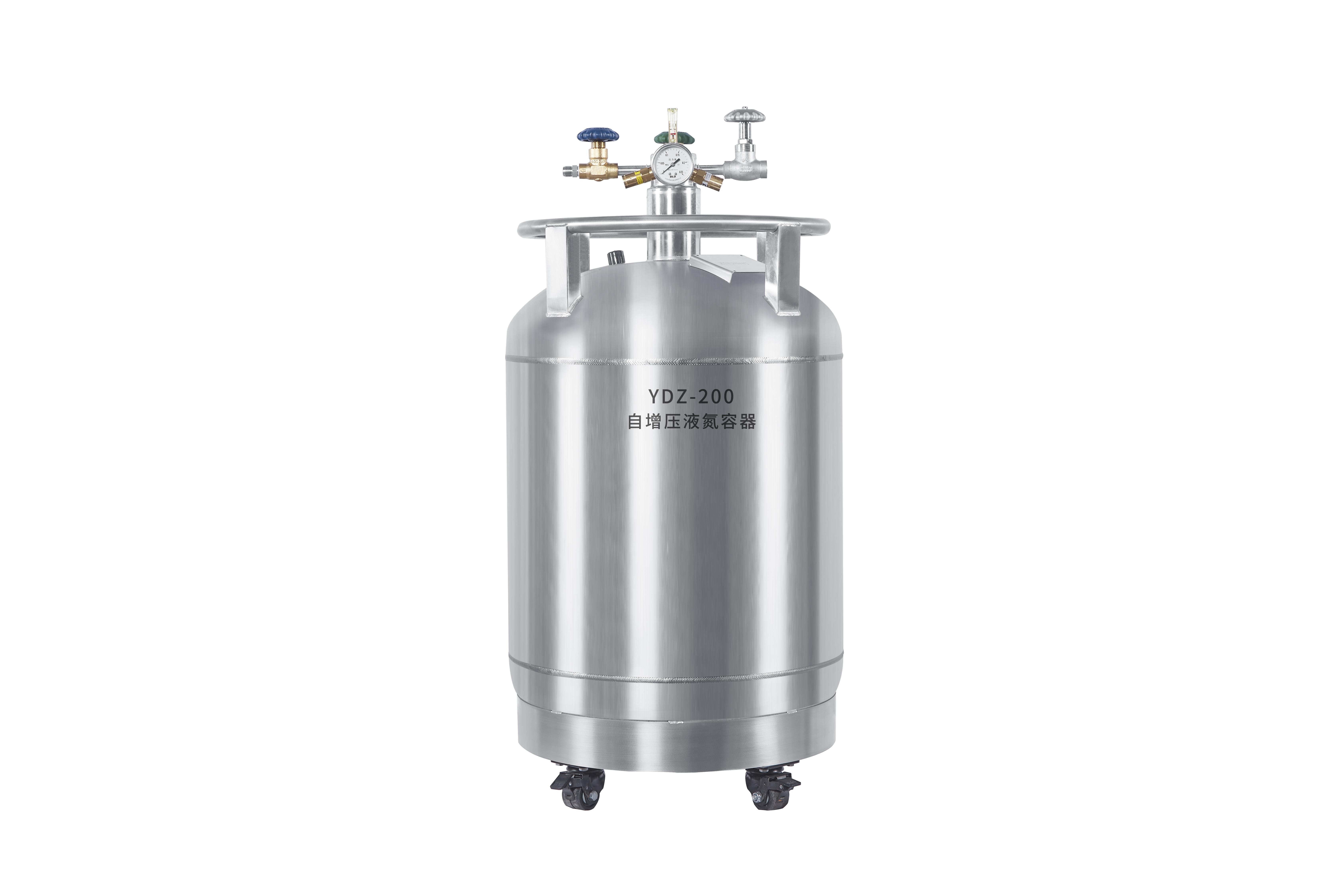

Self-pressurized series liquid nitrogen replenishment tank is used for transportation and storage of low-temperature liquid nitrogen. It is a high-performance low-temperature liquid nitrogen medium storage container. Internally stored liquid nitrogen is drained. Self-pressurization series liquid nitrogen tanks are composed of control structure and tank body. All models in this series are equipped with four mobile swivel casters, which facilitate the use and movement of containers in different locations. At present, it is widely used in mold industry, animal husbandry, medicine, semiconductor, food, aerospace, military and low temperature chemical industries and fields.

ModelUNITYDZ-30YDZ-50YDZ-100YDZ-150YDZ-200YDZ-230YDZ-300YDZ-500YDZ-1000WYDZ-2000W
Geometric volumeL335511016522025033055011002150
Effective volumeL305010015020023030050010002000
Tank outer diametermm40445555665665665680695812601362
Height mm85096011201110128015801410150014801630
Empty weight kg3038638696130205265540950
Static liquid nitrogen daily evaporation rate%3.22.21.210.80.60.80.80.60.5
Standard working pressureMpa0.050.050.050.050.050.050.050.050.050.05
Maximum  working pressureMpa0.090.090.090.090.090.090.090.090.090.09
Infusion volumeL/min≥5 L/Min≥5L/Min≥5 L/Min≥5 L/Min≥10 L/Min≥10 L/Min≥10L/Min≥10 L/Min

Primary safety valve opening pressureMpa0.0990.0990.0990.0990.0990.0990.0990.0990.0990.099
Secondary safety valve opening pressureMpa0.150.150.150.150.150.150.150.150.150.15
Pressure gauge indication rangeMpa0~0.250~0.250~0.250~0.250~0.250~0.250~0.250~0.250~0.250~0.25
